Place of Origin: | Fujian, China |
---|---|
Brand Name: | HI-CREATE |
Certification: | CE |
Minimum Order Quantity: | 1 set |
Price: | $12,000.00 - $60,000.00 / Set |
Packaging Details: | Machine to make toilet paper tissue and kitchen towel is packing by wooden case |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1 set/month |
Applicable Industries: | Manufacturing Plant | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
---|---|---|---|
Local Service Location: | India, Romania | Showroom Location: | India, Romania |
Condition: | New | Product Type: | Toilet Tissue |
Processing Type: | Paper Slitting And Rewinding Machine | Voltage: | 220/380V |
Power(W): | 4.5KW | Dimension(L*W*H): | 6.5*3.34*1.7 M |
Weight: | 5260 Kg | Warranty: | 1 YEAR, One Year |
After-sales Service Provided: | Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support | Production Capacity: | 0-160m/min |
Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
Marketing Type: | New Product 2020 | Warranty Of Core Components: | 1 YEAR |
Core Components: | PLC, Pressure Vessel, Engine, Gear, Motor, Bearing, Gearbox | Model(HC-TT): | 2800 |
Max Parent Roll Width(mm): | 2700 | Max.parent Roll Diameter(mm): | 1000-1200 Mm |
Qty. Of Unwind Stand(pcs): | 2-3 Stands | Outer Dia.of Finished Log(mm): | 90-135 |
Core Inner Dia.of Finished Log(mm): | 25-50 | Perforating Size(mm): | 90-500 |
Core Outside Dia. Of Finished Product: | 20-50mm | Port: | Xiamen |
High Light: | HI CREATE 4.5KW Tissue Paper Machine,4.5KW tissue manufacturing machine,160m/min Tissue Paper Machine |
Product Description:

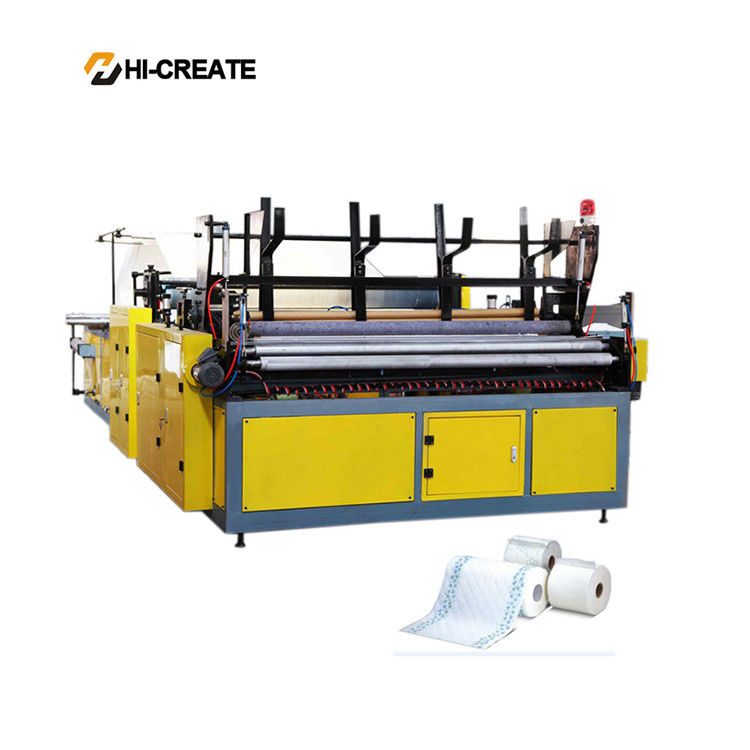

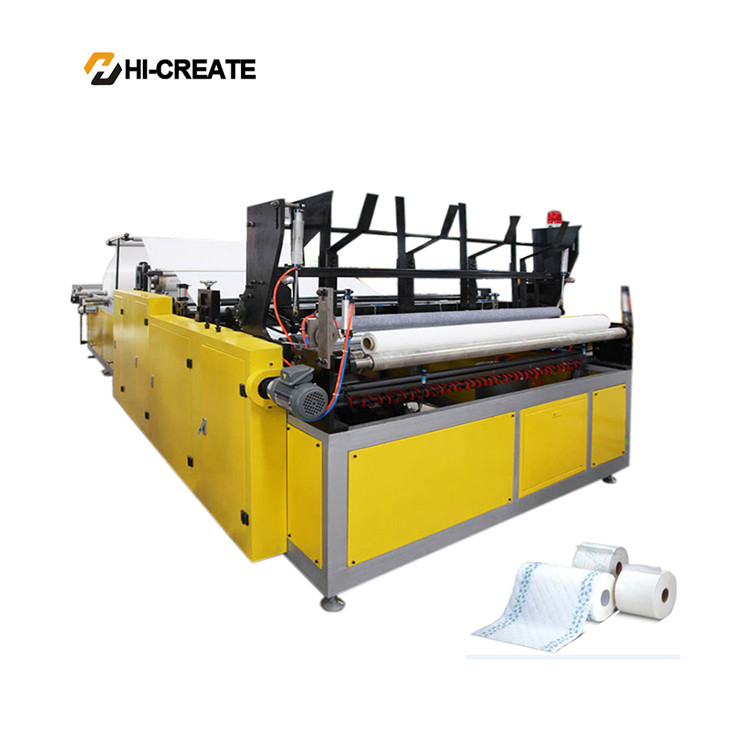

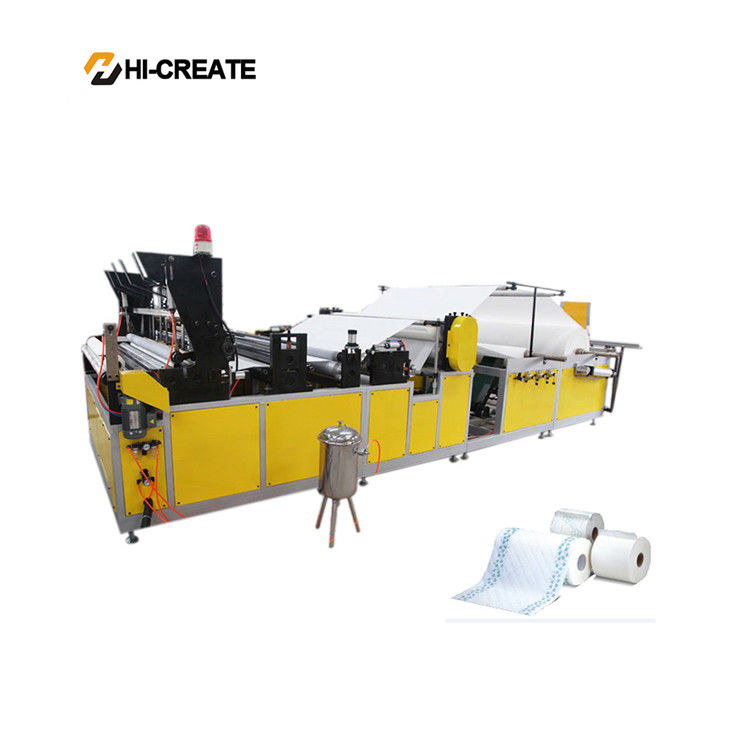

Machine to make toilet paper tissue and kitchen towel is a new kind of life sanitation equipment. The production of kleenex with health, convenient, economical three advantages. Our machine principle was to use the knife roll to slit jumbo roll, perforating and rewinding the seted diameter long paper roll,auto sealing and slitting,then using the band saw slitting machine to cut the long paper roll to small toilet paper roll, produce with paper core and without paper core.
1. Production process is controlled by PLC.
2. Operated and controlled by touch screen with production parameter displayed and equipment stopped automatically when paper is broken.
3. Jumbo roll paper is pneumatically fed and unwinding is equipped independently with a tension control device.
4. The rewinding process of the product is tight first and loosen afterward,with it stension adjustable.
5. Perforating line distance is adjustable.
6. Replacement of paper core,spraying of glue,cutting of paper ,all these work will be don-me in sequence on the machine.
7. Embossing are available with patterns to be selected by client.
8. Bearing ,electric components and synchronous belt are Chinese famous brands.
9. Double embossing roller can be produced to meet customers' demands,glue applying device can be added to produce kitchen towel,the auxiliary1-3 color printing device can additionally be provided.
Technology parameters:
Model(HC-TT)
|
1092
|
1575
|
1760
|
2200
|
2500
|
2800
|
Max parent roll width(mm)
|
1300
|
1750
|
2000
|
2150
|
2400
|
2700
|
Max.parent roll diameter(mm)
|
1000-1200 mm
|
|||||
Qty. of unwind stand(pcs)
|
2-3 stands
|
|||||
Core inner dia.of parent roll
|
Standardφ3' (76.2mm) unless otherwise specified
|
|||||
Data setting
|
PLC
|
|||||
Operate speed(m/min)
|
0-160
|
|||||
Outer dia.of finished log(mm)
|
φ90-135
|
|||||
Core inner dia.of finished log(mm)
|
φ25-50
|
|||||
Mechanical driving
|
Driving by stepless gearbox
|
|||||
Pneumatic system
|
3HP air compressor, min. pressure 5kg/cm2 ( provide by user)
|
|||||
Main driving(KW)
|
4.5KW
|
|||||
Dimensions(L*W*H)(m)
|
6.5*1.94*1.7
|
6.5*2.4*1.7
|
6.5*2.54*1.7
|
6.5*2.74*1.7
|
6.5*3.04*1.7
|
6.5*3.34*1.7
|
Weight(ton)
|
2.63T
|
3.5T
|
3.57T
|
4.13T
|
4.7T
|
5.26T
|
Perforating size(mm)
|
90-500
|
|||||
Core outside dia. of finished product(mm)
|
20-50
|
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
