| Place of Origin: | Quanzhou, Fujian |
|---|---|
| Brand Name: | Hi-Create |
| Certification: | ISO，CE |
| Model Number: | HC-TP-FS-09 |
| Minimum Order Quantity: | 1 set |
| Price: | $40,000.00 - $250,000.00/Set |
| Packaging Details: | Pallet |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2 set/month |
| Brand: | Hi-Create | Application: | Diaper Production Industry |
|---|---|---|---|
| Condition: | New | Working Speed: | 400 Pcs Per Min |
| Dimension: | 23*7*2.5 Meter(L*W*H) | Color: | Blue And Black |
| Power: | 270 KW | Model: | HC-TP-FS-09 |
| High Light: | 97% Baby Diaper Manufacturing Machine,PLC full servo diaper production machine,Baby Diaper Manufacturing Machine 270 KW |
||

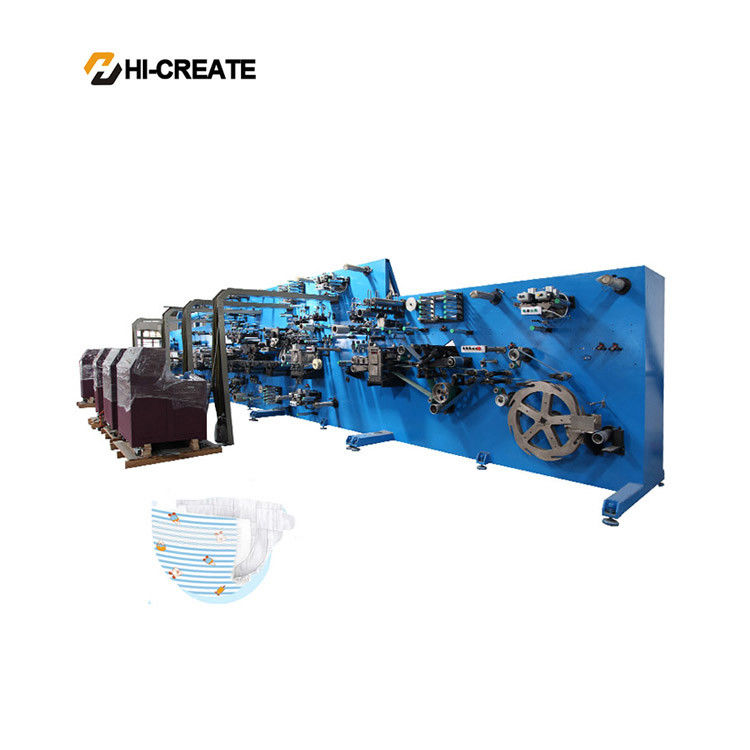

HC-TP-FS-09 High Speed Automatic Pull Up Baby Diaper Training Pants Production Line
Product Characters:
1. Full-servo auto-controlling system with high automation while the machine can be also upgraded as per customers’ reasonable requirement.
2. It is workable to mount the camera monitoring system, which can conduct on-line size checking, location inspecting, missing inspecting, stain spot scanning and so on.
3. Other optional functions can be chosen by customers’ requirements.
Main Product Features:
1. Product structure: Up & Down Tissue Fluff core( with SAP),ADL,Backsheet,Frontal tape,Topsheet,Leg cuff N.W,Side Tape,waistband.
2. Product size: S: 390*320 M: 450*320 L: 500*330 XL: 525*330
3. Controal system: PLC control,operating on the touch screen,man-machine interface,match with a LED digital display to control the production by pattern digitization.
4. Tension system: Up & Down Tissue,ADL,Back sheet,Top sheet,Cuff N.W are adopt A & B shaft active unwinding by inverter motor.
5. Drive system: 3-Sharft Mechanical Drive,Semi servo,Full servo can be choose by customer's requirements.
6. Safety system: It have safety device on the operating side,matched with urgent stop switch,High audio fan uses sound insulation or silencer.
7. Packing way: Equipped with the stacker at the request of client.
8. Materials corrective system: Germany BST automatic web guide system(optional).
Main Technical Parameters:
| Model | HC-TP-FS-09 | ||
| Electric Power Supply | 3 phase/380V/50Hz | ||
| Total Power | 270kw | ||
| Pass Rate | ≥97% | ||
| Production Speed | 400pcs/min | ||
| Outline Dimension(m) | 23*7*2.5 (L*W*H) | ||
Main Structural Device:
1. Pulverizing device;
2. SAP applying device;
3. Drum forming device;
4. Tissue paper wrapping device;
5. Core compacting device;
6. Acquisition layer splitting device;
7. Inner cutting device;
8. Elastic waist applying device;
9. Protective cuff laminating device;
10. Elastic waist applying device;
11. Spandex splitting device;
12. Pinch roll transmit device;
13. Outer cutting device;
14. Waist laminating device;
15. Safty doors;
16. Waste rejecting device;
17. Output & transmit device.
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
