| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | HI-CREATE |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Price: | $4,000.00 - $10,000.00 / Set |
| Packaging Details: | Wooden case packaging for Folding napkin tissue machine |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 Set/Sets per Month |
| Condition: | New | Product Type: | Paper Napkin Machine |
|---|---|---|---|
| Processing Type: | Paper Folding Machine | Voltage: | 380V 50Hz |
| Power(W): | 3.6KW | Dimension(L*W*H): | 4500*1200*1800mm |
| Production Capacity: | 500-600 Pcs/min | Folding Size (mm): | (85-137)* (110-200) |
| Unfolding Size (mm): | (170-275)*(220-400) | Raw Material (mm): | ≤ 1200 |
| Embossing Functional: | Steel To Paper Roller, Steel Roller Has Heating Function | Control System: | Touch Screen Control |
| Folding Type: | 1/8folding | Automatic Counting: | Three-digit Counting |
| Package Size (L*W*H): | 3000*1600*2000mm | Colours Optional: | 1/2/3 |
| After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Online Support | Warranty: | One Year |
| Port: | Xia Men | ||
| High Light: | 1/6 1/8 tissue folding machine,3.6KW Tissue Manufacturing Machine,3.6KW tissue paper napkin machine |
||

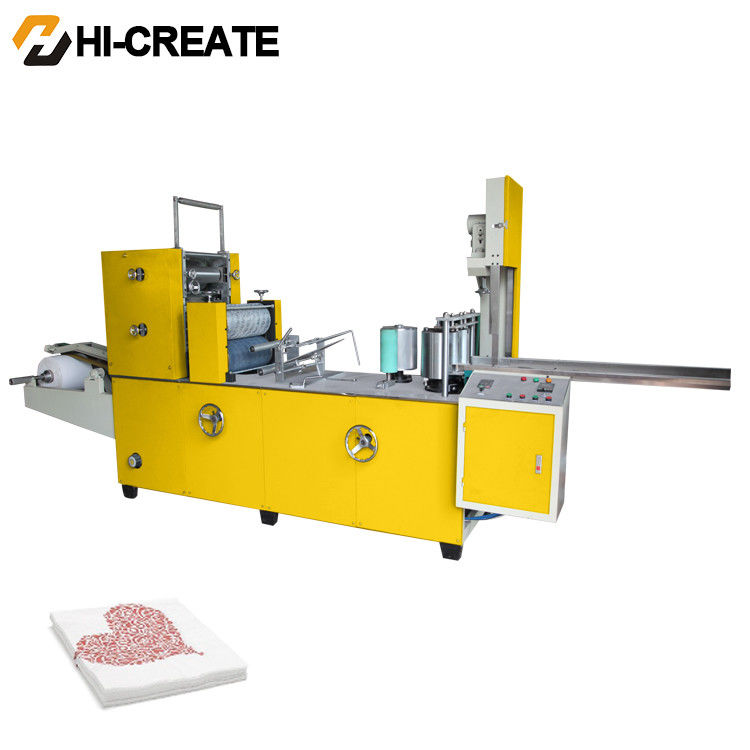

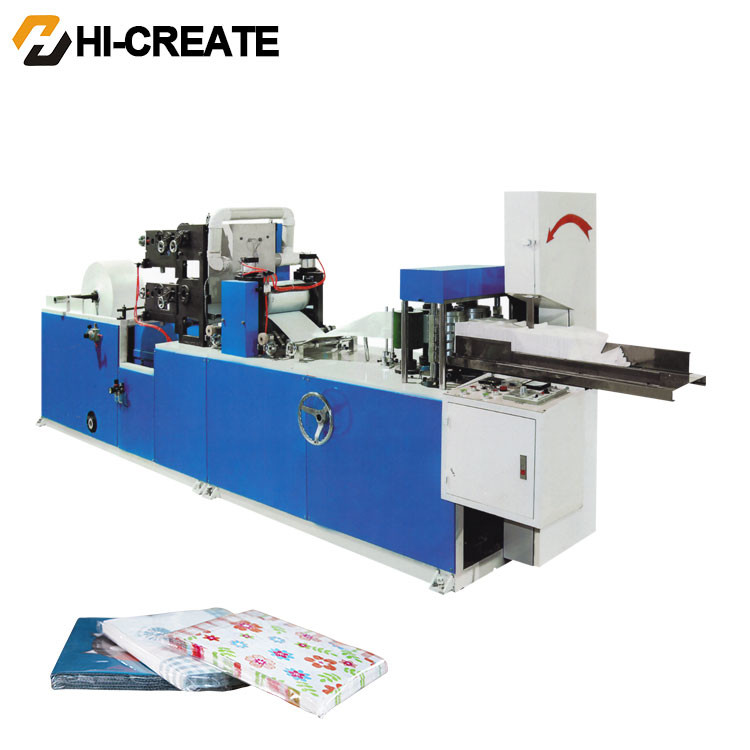

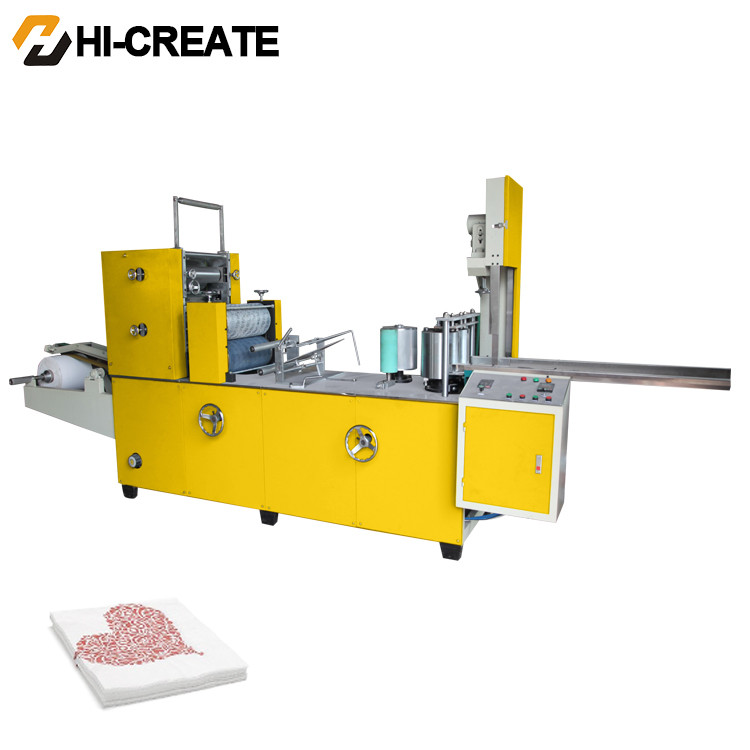

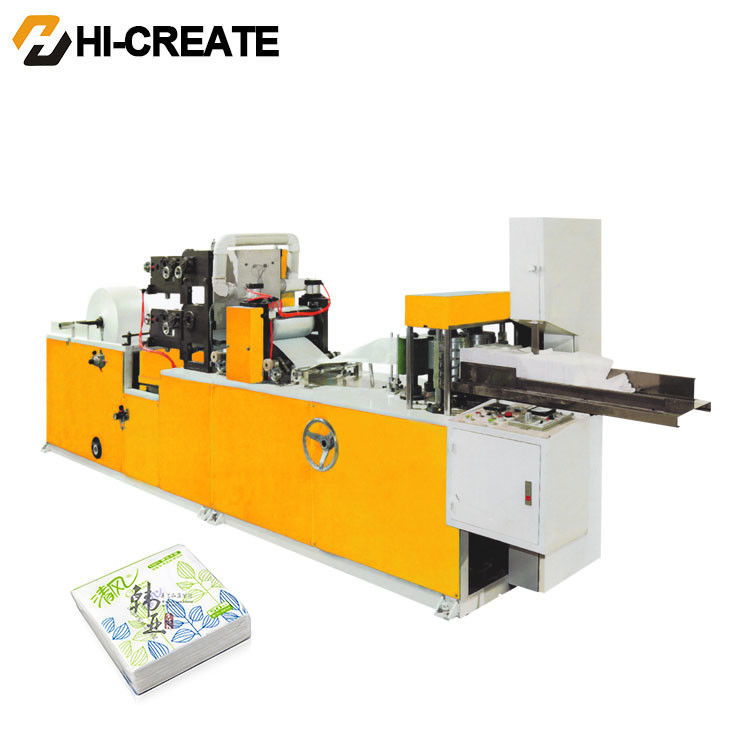

Folding napkin tissue machine embosses, folds, and cuts the cut paper into square or long paper towels.Adjust the gap between the two folding wheels according to the different layers and weight of the base paper. Make adjustments while the machine is running, and complete it in an instant. The calendering device uses steel to glue. The embossing bottom roller adopts a felt roller, a wool roller and a rubber roller (optional one). The base paper is fed into the calendering device through the synchronous belt, and is calendered and then sent to the embossing device, and the base paper is calendered and embossed. There are tension adjustment devices between them.
Main Features:
1. The type of equipment is desktop type, it makes users feel easy and convenient, it has the characteristics such as the transparency is high, the paper leading distance is short, the maintenance of machine is convenient.
2. The most important function of the model after change is that makes the best use of the available space in the heart place.
The advantage is:
① It strengthened the stability of the heart place and improved the running speed.
② The closed function is perfect, it can block paper scraps. It makes the paper scraps separate with principle machine and transmission so that it can be cleaned clearly.
③ It extends the working life of the heart place and reduces the meaningless damage.
④ The model of machine is general, it equipped with single roller and double roller embossing, single color and multicolor printing, the structure is compact and reasonable.(it depends)
3.This model is fit for folding non-woven fabrics and napkin paper, it eliminate the pollution of smeary, iron scrap and belt scrap caused by folding transmission and operation of machine.
4.The modeling is beautiful, it uses little space, the rotating electric box makes up the disadvantages of the whole machine.
5.Loading raw material by flat belt, AP86 speed changing hand-wheel adjusting.
6.Double-color local gravure printing (print logo ,the printing area is smaller than the whole area of napkin paper).
Technology parameters :
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
