Place of Origin: | Fujian China |
---|---|
Brand Name: | hi-create |
Certification: | ISO\CE |
Minimum Order Quantity: | 1 set |
Price: | us200000-1300000 |
Packaging Details: | The wooden case |
Delivery Time: | 45 days |
Payment Terms: | L/C, D/A, D/P, T/T |
Applicable Industries:: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other, Diaper Factory, Manufacturers Of Sanitary Products | Condition:: | Used |
---|---|---|---|
Product Type:: | Diaper Machine | Place Of Origin:: | China |
Voltage: | 380V, 50HZ | Power: | 280KW |
Weight: | 52tons | Machine Direction:: | Customlized |
Output Products From This Machine:: | Xl, L, M, And S Baby Diaper | Warranty: | Year |
Marketing Type:: | New Product 2022 | Brand Name:: | Hi-create |
High Light: | Servo Pull Up Pants Production Line,PLC Baby Diapers Production Line,280KW Baby Diaper Manufacturing Machine |

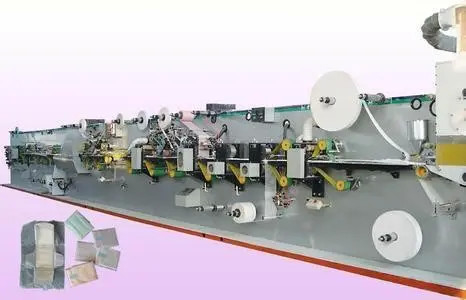

Used Full Automatic Servo Pull Up Pants Baby Diapers Production Line Adult Diaper Manufacture Machine
Design speed
|
600pcs/min
|
Production speed
|
500pcs/min
|
Efficiancy
|
≥ 88%
|
Finished Product
|
≥ 98%
|
Machine Weight
|
About 60 tons
|
Machine Size
|
30*3*3 (L*W*H)
|
Operating Size
|
35*7*5 (L*W*H)
|
Machine capacity
|
about 280 KW
|
Power source
|
380V, 50HZ three phase five wire
|
Air pressure
|
0.6-0.8MPA (37KW pump, 5.8cube/h)
|
Machine color
|
customlized
|
Machine direction
|
customlized
|
Finished products
|
S, M, L, XL
|
Configuration
|
|
1. Product structure:
|
Leg cuff N.W,Top sheet N.W,Fluff core(with SAP) Side Tape,ELastic waistband,Frontal tape,Back sheet.
|
2. Product size:
|
M: 680*450 L: 800*650 XL: 950*760
|
3. Control system:
|
PLC control system,operating on the touch screen,man-machine interface
|
4.Tension system:
|
Leg cuff N.W,Top sheet N.W,elastic waistband,upper & down tissue,back sheet are A & B shaft active unwinding by Inverter motor.
|
5.Drive system:
|
Timing belt and flat belt are imported products,and all the key parts are imported bearings.
|
6.Safety system:
|
It has safety device on the operating side,matched with urgent stop switch,high audio fan uses sound insulation or silencer.
|
7.Materials corrective system:
|
Germany BST automatic web guide system(optional)
|
