| Place of Origin: | Fujian China |
|---|---|
| Brand Name: | hi-create |
| Certification: | ISO\CE |
| Minimum Order Quantity: | 1 set |
| Price: | us200000-1300000 |
| Packaging Details: | The wooden case |
| Delivery Time: | 45 days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Applicable Industries:: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other, Diaper Factory, Manufacturers Of Sanitary Products | Condition:: | Used |
|---|---|---|---|
| Product Type:: | Diaper Machine | Place Of Origin:: | China |
| Voltage: | 380V, 50HZ | Power: | 250KW |
| Weight: | 52tons | Machine Direction:: | Customlized |
| Warranty Of Core Components:: | 1 Year | Marketing Type:: | New Product 2022 |
| Payment:: | New Product 2022 | Brand Name:: | L/C, T/T |
| High Light: | Huggies Baby Diaper Making Machine,250KW Baby Diaper Making Machine |
||

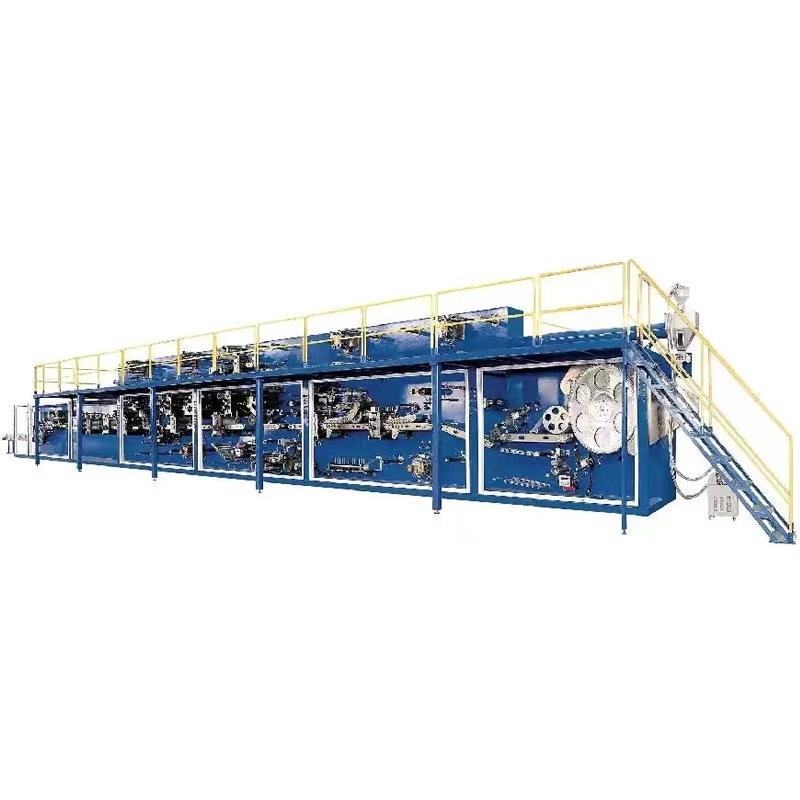

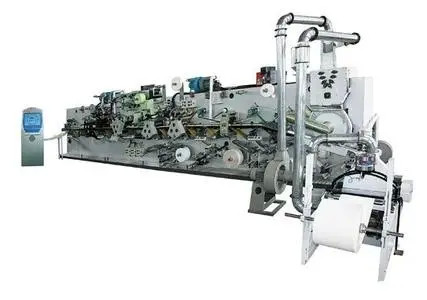

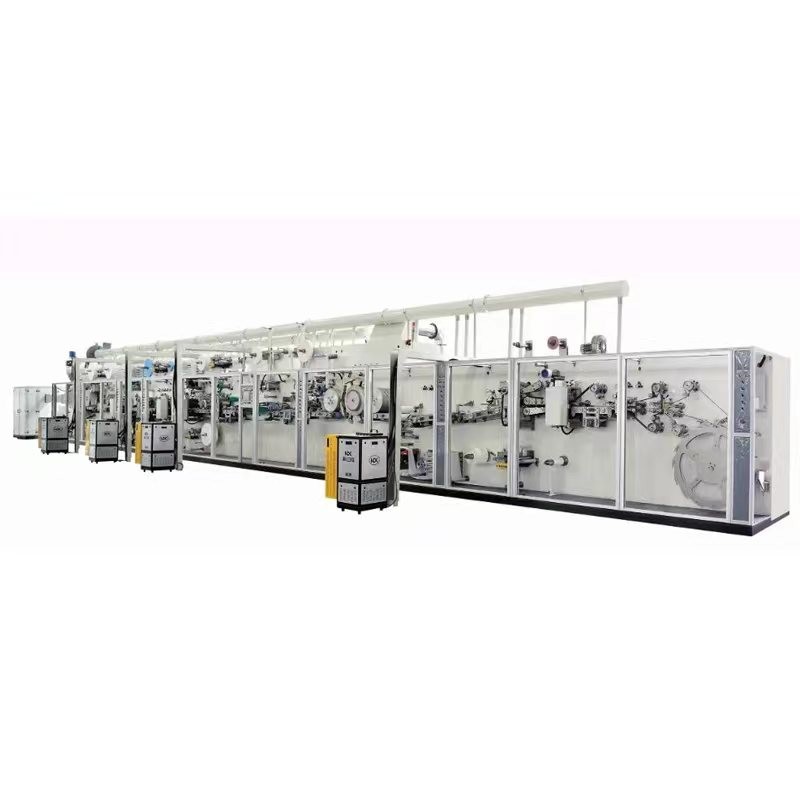

Professional Manufacturer Newborn Huggies Baby Diaper Making Machine Equipment
Main Features:
1. Cell mill;
2. Drum forming;
3. Tension of the tissue paper & spandex controlled by torque control speed;
4. Servo inverter optional governor adopted for main machine drive;
5. Constant tension unwinding system & auto splicer;
6. Rotary bodies adjustable during operation;
7. PLC drive system;
8. Touch screen for man-machine conversation;
9. New mechanism of waist lamination;
10. Whole welded construction for machine frame;
11. Finished products output in line automatically;
12. Safety doors equipped at the operating side.
Main Structural device:
1. Pulverizing device;
2. SAP applying device;
3. Drum forming device;
4. Tissue paper wrapping device;
5. Core compacting device;
6. Acquisition layer splitting device;
7. Inner cutting device;
8. Elastic waist applying device;
9. Protective cuff laminating device;
10. Elastic waist applying device;
11. Spandex splitting device;
12. Pinch roll transmit device;
13. Outer cutting device;
14. Waist laminating device;
15. Safty doors;
16. Waste rejecting device;
17. Output & transmit device.
Main Technical parameter:
| Model | HC-TP-FS | HC-TP-FF |
| Electric Power Supply | 3 phase/380V/50Hz | |
| Total Power | 270kw | |
| Pass Rate | ≥97% | |
| Production Speed | 400pcs/min | 350pcs/min |
| Outline Dimension(m) | 23*7*2.5 (L*W*H) | |
