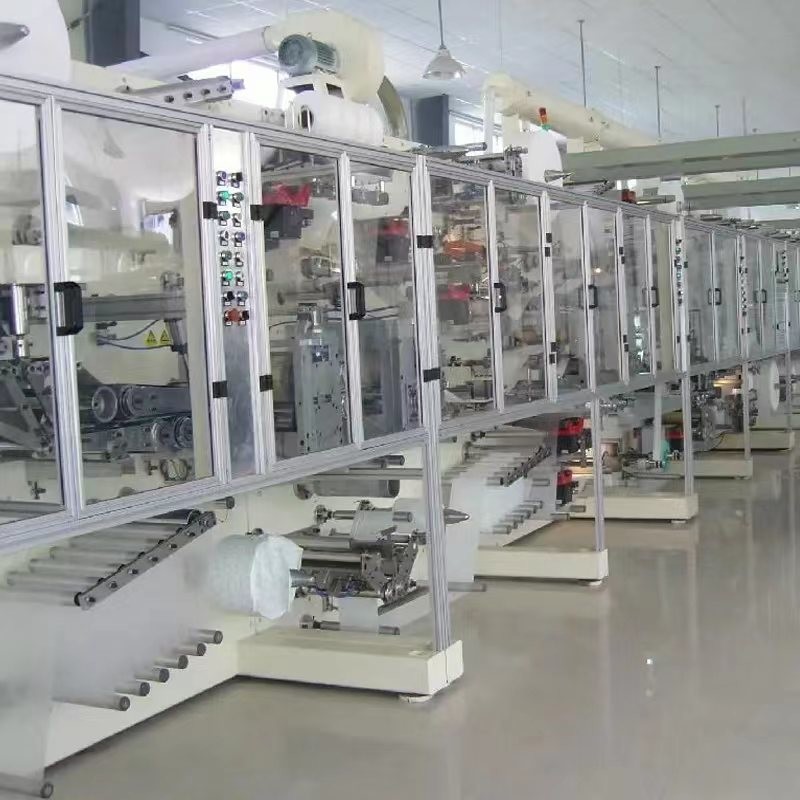

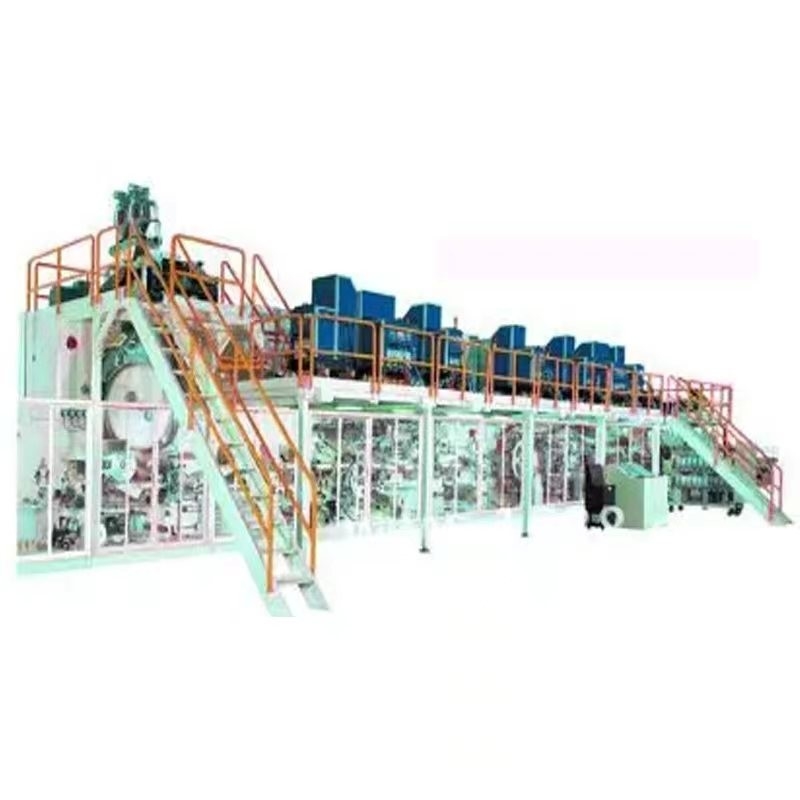

Automatic High Speed Sanitary Pad Machine Sanitary Napkin Making Machine

Name: Automatic High Speed Sanitary Pad Machine Sanitary Napkin Making Machine
Brand: hi-create
SKU: hi-create
Price: 1.00 USD
Availability: InStock
Rating: 5 (162 reviews)

Basic Information

Place of Origin:	FUjian China
Brand Name:	hi-create
Certification:	CE

Minimum Order Quantity:	1 set
Price:	Face to face
Delivery Time:	15 days
Payment Terms:	L/C, D/A, T/T, D/P
Supply Ability:	100 sets

Get Best Price Contact Now

Applicable Industries::	Machinery Repair Shops, Home Use, Retail	Showroom Location::	None
Warranty:	1 Year	Warranty Of Core Components::	1 Year
Core Components::	PLC	After-sales Service::	Installation Videos And Technicians Supply
High Light:	High Speed Sanitary Pad Machine , PLC Sanitary Pad Machine , Automatic Sanitary Napkin Making Machine

Automatic High Speed Sanitary Pad Machine Price Sanitary Napkin Making Machine

Specification

item	value
Specification/Model /ltem	DP-T55
Scope of application	Manually put material(can connect with palletizer)
Design speed	60 packs/min	Relate to product size
Stable speed	≥55 packs/min	Relate to product size
Size mould	3 sets	Standard configuration, sizes provide by buyer
Machine weight(KG)	≤2500
Packaging material	PE,CPPOPP lamination film
Film thickness(mm)	0.04-0.08
Maximum film diameter(mm)	600
Fim core damater(mm)	76	According to national standard
Compressed air(MAP)	Air compression ≥0.5	Buyer prepare
Power supplier	380V/ 50Hz	According to national standard
Suit voltage fluctuate	+/-10%	According to national standard
I/O input(VDC)	24	Electrical control circle input
I/O output (VDC)	24	Electrical control circle output
Machine movement control mode	3 shafts servo shaft positoning oontrol	Electric cam movement curve
Machine main transmission mode	20 crmnti mechanical Cam + electric Cam transmission
Machine color and craft	Oyster grey,static spray plant craft
Packing type	3D wrapping,both sides even sealing.
