| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | hi-create |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
| Price: | $150,000.00 - $55,000,000.00/Set |
| Packaging Details: | Packing by film and then by FCL |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3 Sets per month |
| Power: | 320KW | Applicable Industries:: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Showroom Location:: | Canada, Italy, Brazil, India | Product Type:: | Diaper Machine |
| Place Of Origin:: | China | Warranty: | 1 Year, 12 Months |
| Warranty Of Core Components:: | 1 Years | Weight: | 85 Kg |
| Machine Installed Capacity:: | 320kw | ||
| High Light: | 320KW Sanitary Napkin Pads Machine,CE Approved Adult Diapers Making Machine,600pcs/min Sanitary Pads Manufacturing Machine |
||

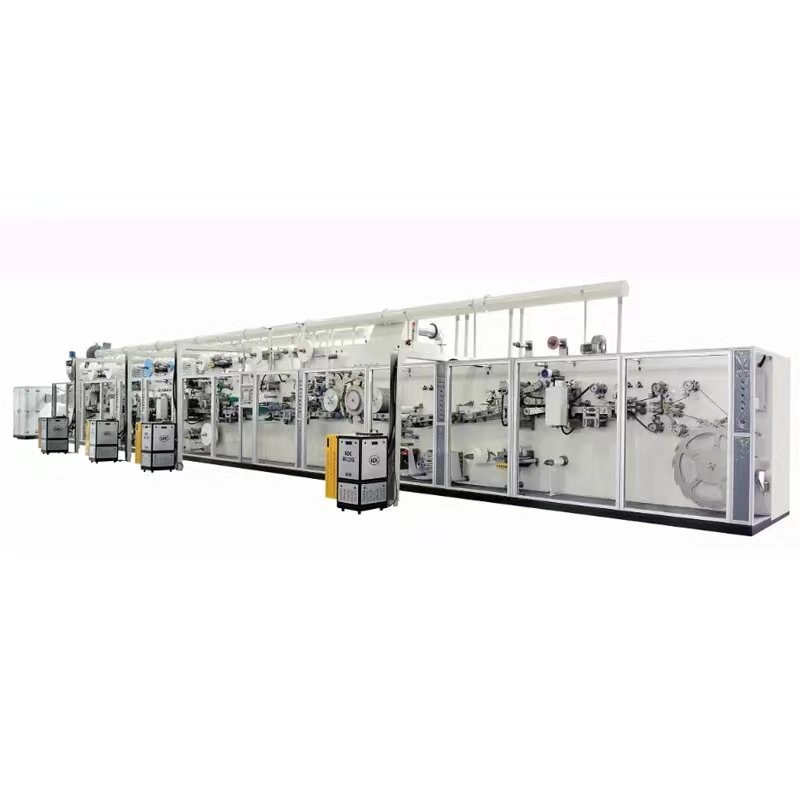

Hot Sell Disposable Adult Reusable Diapers Machine Economic Sanitary Napkin Pads Making Machine
| Main Parameter | |
| Overall Size | 30*6*4m |
| Machine Size | 22*2*3.5m |
| Design Speed | 600pcs/min |
| Stable work speed | 450-500pcs/min |
| Pass percentage | 98% |
| Power source | 380V,50HZ |
| Machine capacity | about 260kw |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | about 60T |
| Configuration | |
| Product size | 380x280 420x320 480x320 520x340 |
| Safety system | Safety guard installed at the operating side, with security identifier, emergency stop switch at per segment, Driven side is equipped with the radiator system and safety wire. |
| Control system | PLC control system,Operating on the touch screen,Configure HDTV monitor |
| Materials corrective system | Germany BST automatic web guide system (optional). |
| Drive system | Full servo drive, digital size change, ensure, run synchronized at full process. The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase. |
| Product structure | Top(bottom) tissue paper,sap core,ADL,hydrophobic NW(leg cuff),topsheet NW,PE film,spandex,frontal tape,elastic nonwoven(zero-waste),S cut |
| Tension system | Tissue paper, cotton core (SAP), Top sheet nonwoven, ADL,PE film,back&wing release paper,packing film A&B shaft unwinding by Inverter motor |
| Packing Way | Auto stacker as customized design (one push two exit.). |
