| Place of Origin: | Quanzhou, Fujian |
|---|---|
| Brand Name: | Hi-Create |
| Certification: | ISO，CE |
| Model Number: | HC-TP-FS-06 |
| Minimum Order Quantity: | 1 set |
| Price: | USD100000-500000 |
| Packaging Details: | Pallet |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3SET/60 DAYS |
| Brand: | Hi-Create | Application: | Diaper Production Industry |
|---|---|---|---|
| Condition: | New | Working Speed: | 400 Pcs/min |
| Dimension: | 23*7*2.5 Meter(L*W*H) | Color: | Yellow And White |
| Power: | 270 KW | Warranty: | One Year |

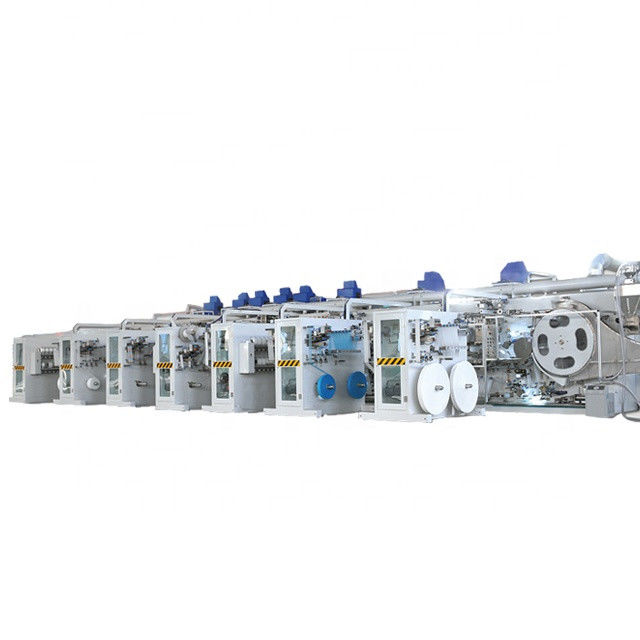

High Performance Baby Pull Up Training Pants Making Machine
Main Function Features of Baby Pull Up Machine
1. Servo motors driving with PLC control and touch screen;
2. High-speed teeth-like crusher;
3. SAP auto adding with amount control;
4. Servo unwinding, auto-tension control and auto splicing for raw material;
5. Auto reject for wasted & rejected product, auto detect & alarm for material exhausted;
6. Phase adjusting during running without stop;
7. Diaper auto counting & stacking;
8. With the LED display screen, displaying urgent stop indication and current speed.
Innovative technologies improve efficiency and quality.
The proprietary Turn and Pitch (TAP) unit turns a product and transfers it to a conveyor for pouch wrapping. This is done with one unit at high speeds, eliminating the need for two units and multiple hand-offs which could lead to registration or placement errors and product defects such as product edges or corners flipping back.
New Baby Diaper Machine Elastic Waistband Pampers Nappy Production Line
Elastic wasitband baby diaper provides the comfortable waering experience to the baby. The waistband is full with elastic which will not give more pressure to the baby's waistband and give more adjustable space for the side tape.
Elastic waistband nonwoven is soft and highly in elastic, the elastic wasitband nonwoven can be formed on line and also can use the ready elastic waistband nonwoven for the production.
Main Technical Parameters of Baby Diaper Machine
1. Raw Material Distribution: With absorbing layer on top side ,bottom sheet at down side
High performance second hand price baby diaper making machine Main Technical Parameters:
| Model | HC-TP-FS-06 | ||
| Electric Power Supply | 3 phase/380V/50Hz | ||
| Total Power | 270kw | ||
| Pass Rate | ≥97% | ||
| Production Speed | 400pcs/min | ||
| Outline Dimension(m) | 23*7*2.5 (L*W*H) | ||
Configurations of Baby Tranining Pants Making Machine
Condition: New
Product Type: Training pants machine Machine
Processing Type: Pulp Molding Machine
Place of Origin: Fujian, China (Mainland)
Model Number: HC-FS-TP
Voltage: 380v, 50HZ, three-phase five-wire
Power(W): about 220kw
Dimension(L*W*H): 22*7*3.5m(L*W*H)
Weight: 60 T
Certification: ISO, certificate of utility model patent
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Machine type: pull up diaper making machine
Diaper size: S, M, L, XL
Control system: Full-servo control
Packaging system: Equipped with the stacker at the request of client
Efficient rate: ≥ 85%
Reject rate: ≤2%
Air pressure: 0.6-0.9Mpa
Packing & Shipping:
Our Company & Factory:
About Hi-Create
Hi-Create is a professional machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
Hi-Create covers an area of 20000 square meters, gets CE, ISO, SGS.
Hi-Create exports more than 1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Baby diaper machine Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
