Place of Origin: | Quanzhou, Fujian |
---|---|
Brand Name: | Hi-Create |
Certification: | ISO,CE |
Model Number: | HC-TP-FS-06 |
Minimum Order Quantity: | 1 set |
Price: | USD100000-500000 |
Packaging Details: | Pallet |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 3SET/60 DAYS |
Brand: | Hi-Create | Application: | Diaper Production Industry |
---|---|---|---|
Condition: | New | Working Speed: | 400 Pcs/min |
Dimension: | 23*7*2.5 Meter(L*W*H) | Color: | Yellow And White |
Power: | 270 KW | Warranty: | One Year |
Product Name: | China Diaper Making Machine Manufacturers And Suppliers | ||
High Light: | PLC Control Diaper Manufacturing Machine,Diaper Making Machine 400pcs/min,Diaper Manufacturing Machine 400pcs/Min |

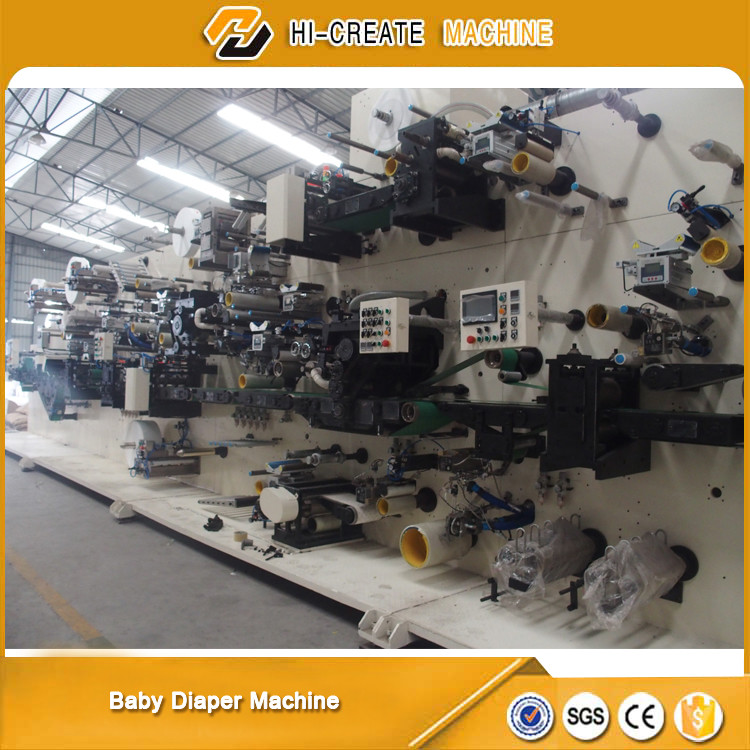

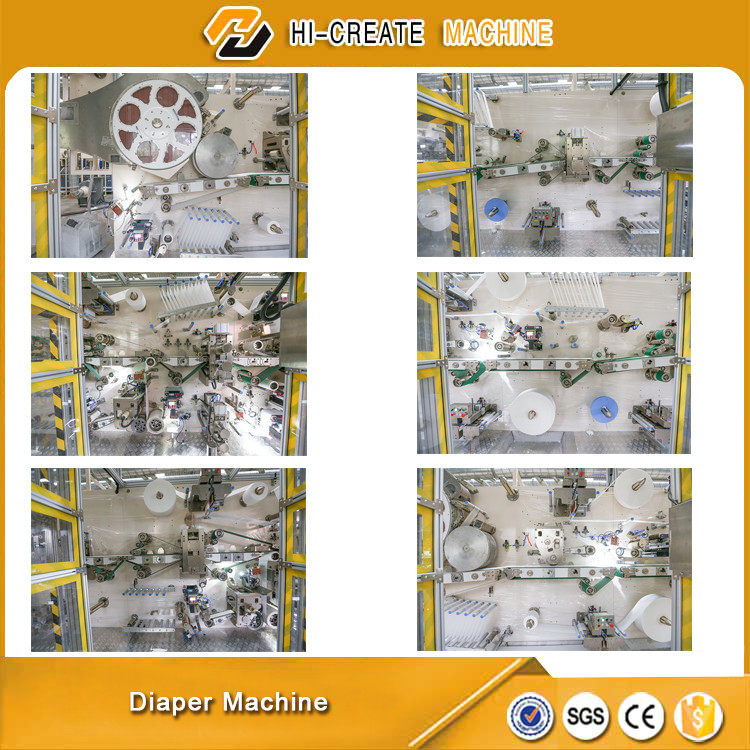

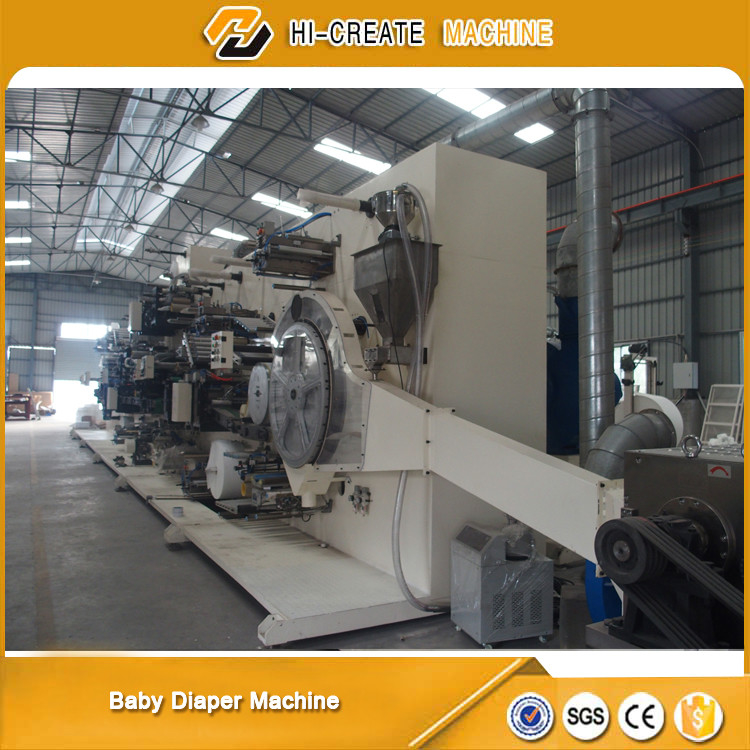

China Diaper Making Machine Manufacturers And Suppliers
What is the raw material of diaper?
An average diaper weighs between 1.4 and 1.8 ounces and is primarily made of cellulose, polypropylene, polyethylene and a super absorbent polymer, as well as minor amounts of tapes, elastics and adhesive materials.
China diaper making machine manufacturers and suppliers Functions and Features
1. Servo motors driving with PLC control and touch screen;
2. High-speed teeth-like crusher;
3. Web-wheel molding;
4. SAP auto adding with amount control;
5. Frequency unwinding,auto-tension control and auto splicing for raw material;
6. Auto reject for wasted & rejected product,auto detect & alarm for material exhausted;
7. Phase adjusting during running without stop;
8. Baby Diaper tri-folding or bi-folding
9. Baby Diaper auto counting & stacking.
Main Technical Parameters of Baby Diaper Machine
1. Raw Material Distribution: With absorbing layer on top side ,bottom sheet at down side
Baby Diaper Production Making Machine Main Product Features:
1. Cell mill;
2. Drum forming;
3. Tension of the tissue paper & spandex controlled by torque control speed;
4. Servo inverter optional governor adopted for main machine drive;
5. Constant tension unwinding system & auto splicer;
6. Rotary bodies adjustable during operation;
7. PLC drive system;
8. Touch screen for man-machine conversation;
9. New mechanism of waist lamination;
10. Whole welded construction for machine frame;
11. Finished products output in line automatically;
12. Safety doors equipped at the operating side.
High performance second hand price baby diaper making machine Main Technical Parameters:
Model | HC-TP-FS-06 | ||
Electric Power Supply | 3 phase/380V/50Hz | ||
Total Power | 270kw | ||
Pass Rate | ≥97% | ||
Production Speed | 400pcs/min | ||
Outline Dimension(m) | 23*7*2.5 (L*W*H) |
Baby Diaper Production Making Machine Configurations of Baby Tranining Pants Making Machine
Condition: New
Product Type: Training pants machine Machine
Processing Type: Pulp Molding Machine
Place of Origin: Fujian, China (Mainland)
Model Number: HC-FS-TP
Voltage: 380v, 50HZ, three-phase five-wire
Power(W): about 220kw
Dimension(L*W*H): 22*7*3.5m(L*W*H)
Weight: 60 T
Certification: ISO, certificate of utility model patent
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Machine type: pull up diaper making machine
Diaper size: S, M, L, XL
Control system: Full-servo control
Packaging system: Equipped with the stacker at the request of client
Efficient rate: ≥ 85%
Reject rate: ≤2%
Air pressure: 0.6-0.9Mpa
Packing & Shipping:
Our Company & Factory:
About Hi-Create
Hi-Create is a professional machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
Hi-Create covers an area of 20000 square meters, gets CE, ISO, SGS.
Hi-Create exports more than 1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Baby diaper machine Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
