| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | HI-CREATE |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Price: | $12,000.00 - $60,000.00 / Set |
| Packaging Details: | plastic film sprey |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2 Sets per month |
| Applicable Industries: | Manufacturing Plant | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Local Service Location: | India, Romania | Showroom Location: | India, Bangladesh |
| Condition: | New | Product Type: | Toilet Tissue |
| Processing Type: | Paper Slitting And Rewinding Machine | Voltage: | 220v/380v |
| Power(W): | 4.5kw | Dimension(L*W*H): | 6.5*1.94*1.7mm |
| Weight: | 2.63T, 1.5-2T | Warranty: | 1 YEAR |
| After-sales Service Provided: | Free Spare Parts, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support, Engineers Available To Service Machinery Overseas | Max Parrent Roll Width: | 1300----2700 |
| Max.parent Roll Diamete: | Standard 1100mm Unless Otherwise Specified | Qty Of Unwind Stand: | 3 Stands (pls Specify When Order |
| Core Inner Dia.of Parent Roll: | Standard 3'(76.2mm) Unless Otherwise Specified | Operate Speed: | 0-150M/MIN |
| Outer Dia.of Finished Log: | 90-135mm | Core Inner Dia.of Finished Log: | 25-50m |
| Main Driving: | Electromagnetism 3KW 380V,50HZ | Production Capacity: | 0-150M/MIN |
| Port: | Xiamen | ||
| High Light: | Tissue Converting Rewinder Machine,Paper Roll Converting Rewinder machine,Kitchen Towel Converting Rewinder machine |
||

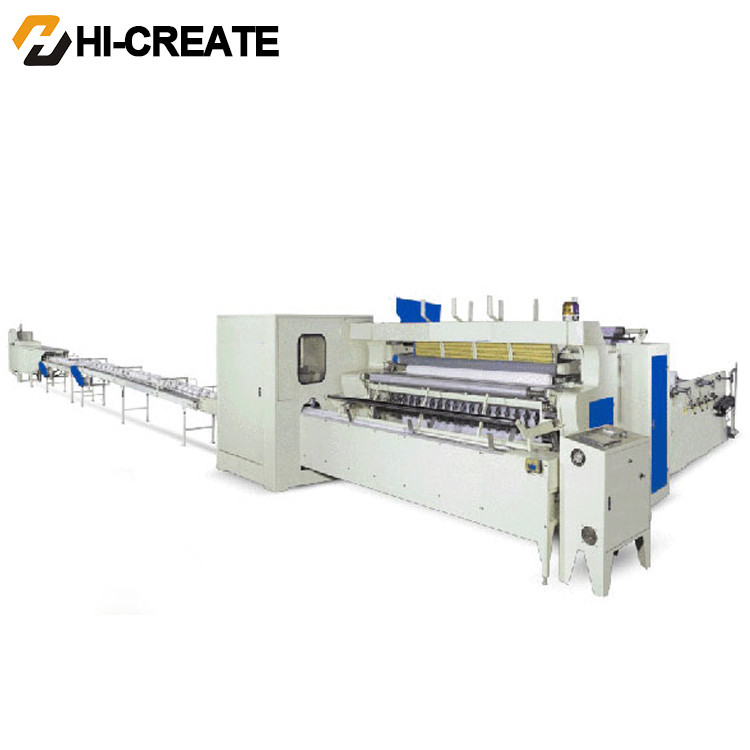

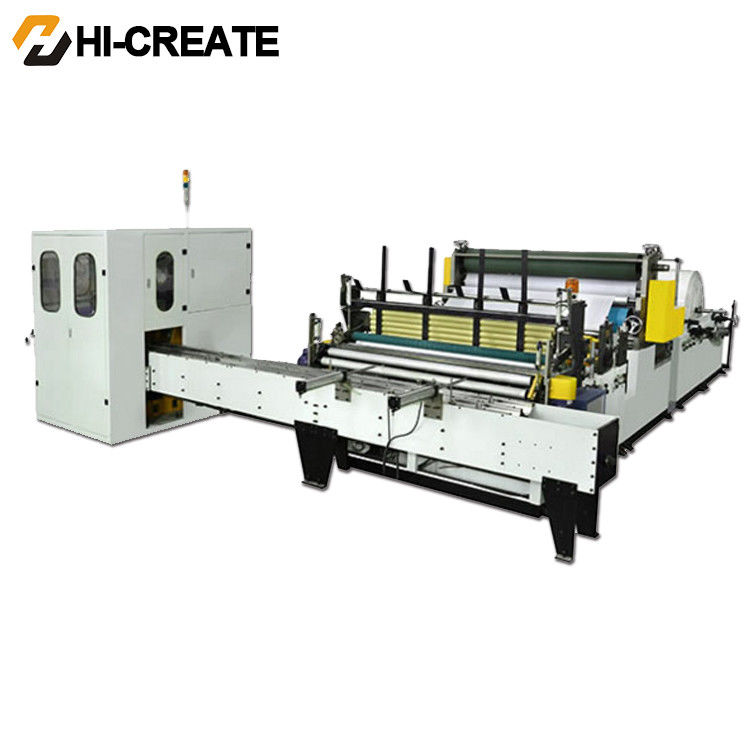

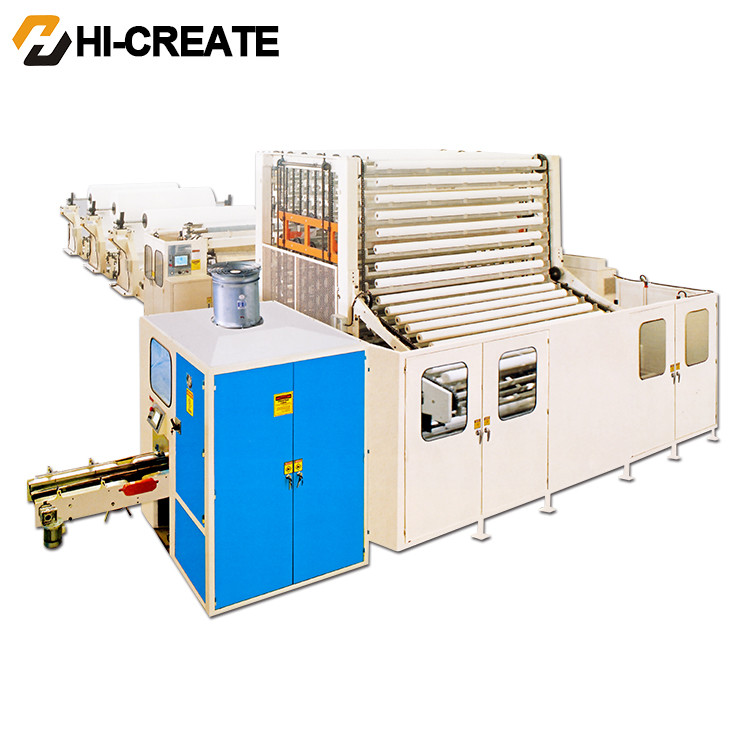

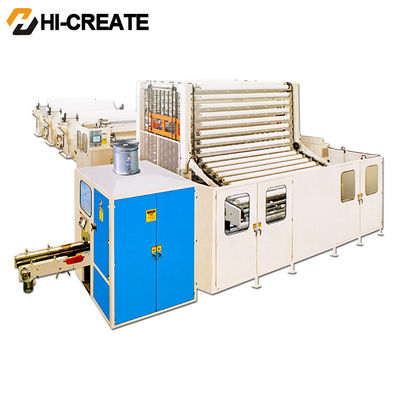

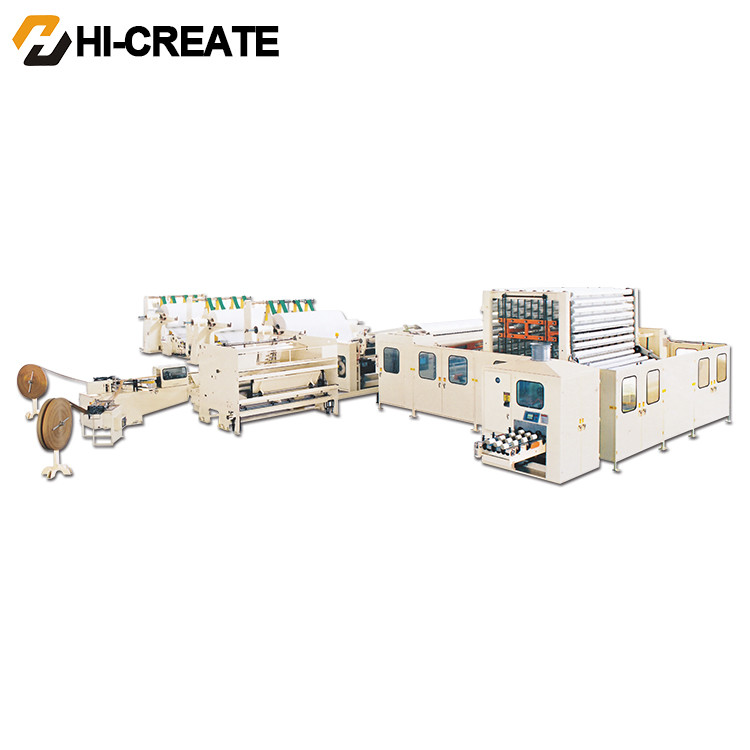

Embossed kitchen towel paper roll toilet tissue converting rewinder production line:
Technology parameters:
| Model | 1092 | 1575 | 1760 | 2200 | 2500 | 2800 |
| Max parrent roll width | 1300 | 1750 | 2000 | 2150 | 2400 | 2700 |
| Max.parent roll diamete | Standard 1100mm unless otherwise specified | |||||
| Qty of unwind stand | 3 stands (pls specify when order) | |||||
| Core inner dia.of parent roll | Standard 3'(76.2mm) unless otherwise specified | |||||
| Data setting | HIMI | |||||
| Operate speed | 0-150M/MIN | |||||
| Outer dia.of finished log | 90-135mm | |||||
| Core inner dia.of finished log | 25-50m | |||||
| Mechanical driving | Driving by Stepless gear box | |||||
| Air -system | 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user) | |||||
| Main driving | Electromagnetism 3KW 380V,50HZ | |||||
| Embossing unit | one sets steel to rubber,steel to steel(should be order) | |||||
| Dimensions | 5.1*2.4*1.5 (length x width x height);(m) | |||||
| Weight | 1.5-2T | |||||
| Perforating Size | 100mm-120mm(Other Sizes Can be Specifird) | |||||
Optional Device:
| Paper Unwind Stand | 1-3 Stands (The Qty.of Raw Paper Rolls to be Specified)(To be Ordered) |
| Gluing | Gluing On Convexity(To be Ordered) |
| Decorative Gluing System | Subject To The Embossing Pattern(To be Ordered) |
| Embossing | Single Embossing,Double Embossing,Steel To Steel Embossing,Pneumatic Embossing (To be Ordered) |
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
