| Place of Origin: | Fujian, China |
|---|---|
| Brand Name: | Hi-Create |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
| Price: | $12,000.00 - $60,000.00 / Set |
| Packaging Details: | PE filem packing or wooden packing |
| Delivery Time: | 60 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 Sets per month |
| Condition: | New | Product Type: | Toilet Tissue |
|---|---|---|---|
| Processing Type: | Paper Slitting And Rewinding Machine | Voltage: | 380v |
| Power(W): | 3.6kw | Dimension(L*W*H): | 6*2*1.2m |
| Weight: | 3t | Max Parrent Roll Width: | 1300----2700 |
| Max.parent Roll Diamete: | Standard 1100mm Unless Otherwise Specified | Qty Of Unwind Stand: | 3 Stands (pls Specify When Order |
| Core Inner Dia.of Parent Roll: | Standard 3'(76.2mm) Unless Otherwise Specified | Operate Speed: | 0-150m/min |
| Max. Parent Roll Dia.: | 1000-1200mm | Outer Dia. Of Finished Log: | 90-135mm |
| Core Inner Dia. Of Finished Log: | 25-50mm | Mechanical Driving: | Driving By Stepless Gearbox |
| Perforating Size: | 90-500 | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Port: | Xiamen |
| High Light: | 1200Mm Tissue Paper Embossing Machine,PLC Tissue Paper Embossing Machine,380v Paper Embossed Machine |
||

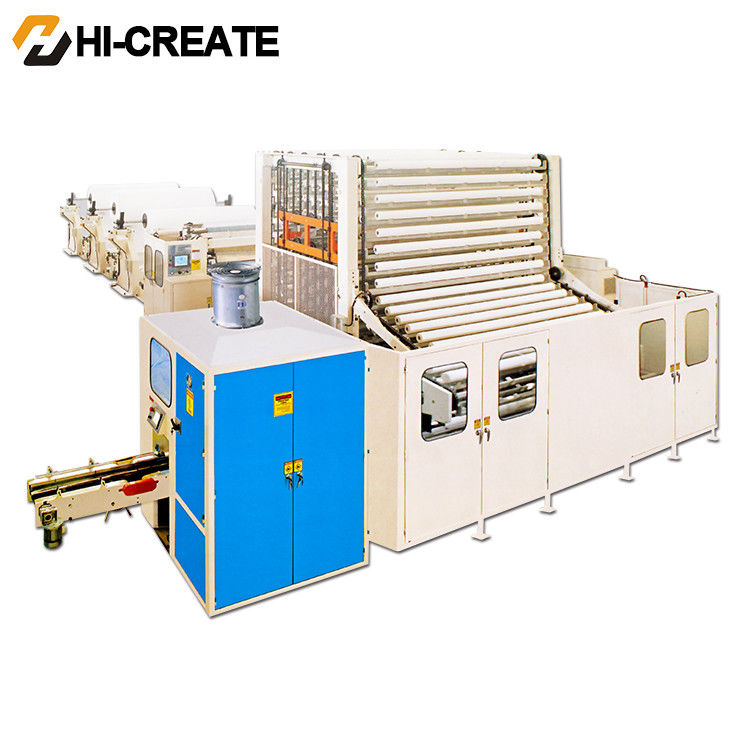

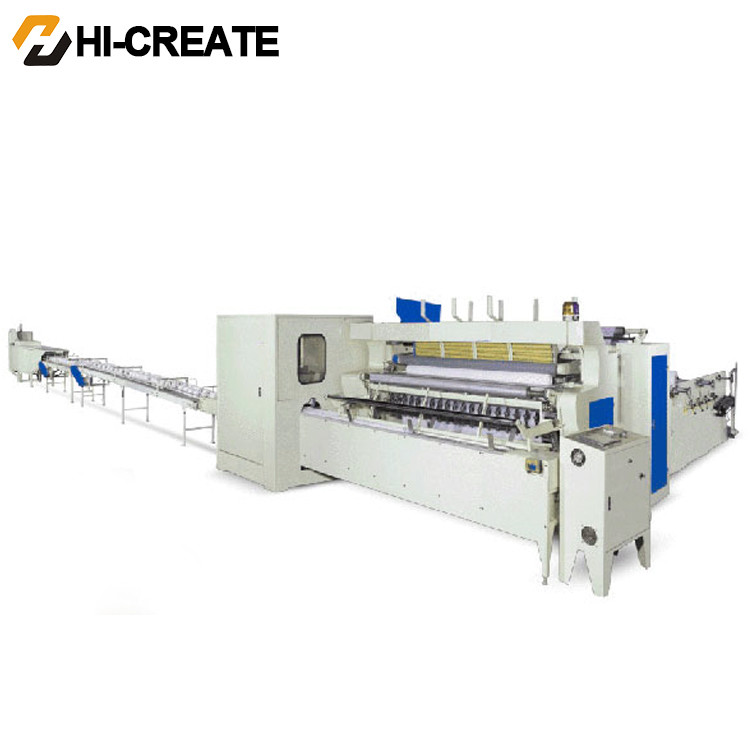

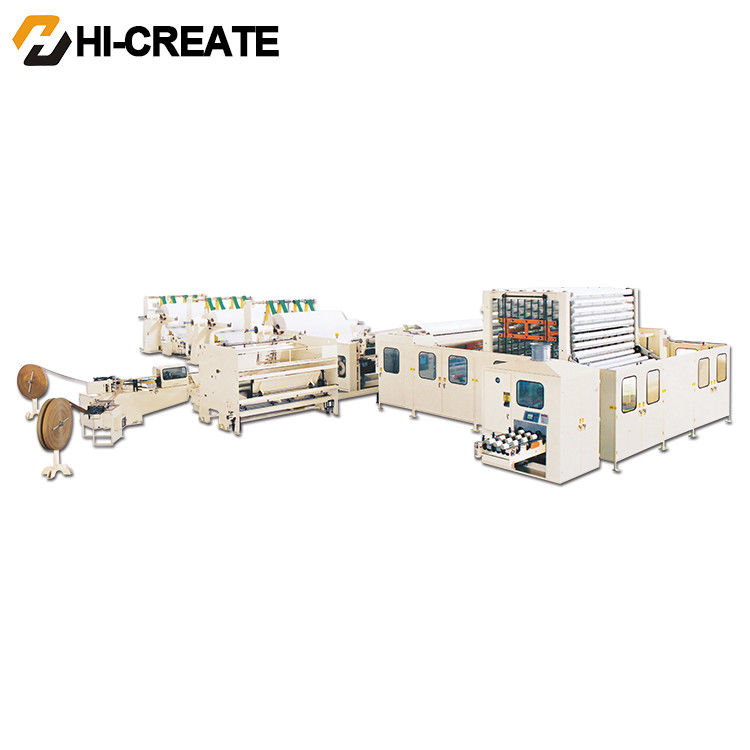

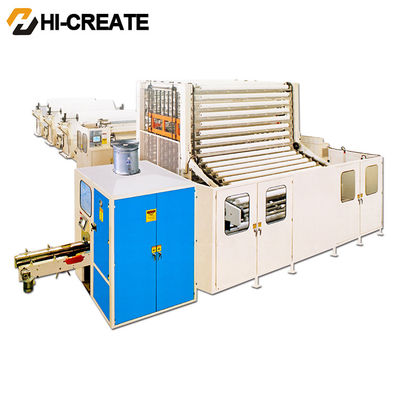

Italy Automatic Toilet Tissue Paper Embossed Machine
Technology Parameters:
|
Model(HC-TT) |
1092 |
1575 |
1760 |
2200 |
2500 |
2800 |
|
Max parent roll width(mm) |
1300 |
1750 |
2000 |
2150 |
2400 |
2700 |
|
Max.parent roll diameter(mm) |
1000-1200 mm |
|||||
|
Qty. of unwind stand(pcs) |
2-3 stands |
|||||
|
Core inner dia.of parent roll |
Standardφ3' (76.2mm) unless otherwise specified |
|||||
|
Data setting |
PLC |
|||||
|
Operate speed(m/min) |
0-160 |
|||||
|
Outer dia.of finished log(mm) |
φ90-135 |
|||||
|
Core inner dia.of finished log(mm) |
φ25-50 |
|||||
|
Mechanical driving |
Driving by stepless gearbox |
|||||
|
Pneumatic system |
3HP air compressor, min. pressure 5kg/cm2 ( provide by user) |
|||||
|
Main driving(KW) |
4.5KW |
|||||
|
Dimensions(L*W*H)(m) |
6.5*1.94*1.7 |
6.5*2.4*1.7 |
6.5*2.54*1.7 |
6.5*2.74*1.7 |
6.5*3.04*1.7 |
6.5*3.34*1.7 |
|
Weight(ton) |
2.63T |
3.5T |
3.57T |
4.13T |
4.7T |
5.26T |
|
Perforating size(mm) |
90-500 |
|||||
|
Core outside dia. of finished product(mm) |
20-50 |
|||||
Optional Device:
|
Embossing unit |
Steel to steel, steel to felt, steel to woolen, steel to rubber |
|
Paper unwind stand |
1-3 Stands (The Qty.of raw paper rolls to be specified)(to be ordered) |
|
Gluing |
Gluing on Convexity(to be ordered) |
|
Printing system |
According to customer's printing pattern(to be ordered) |
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
