Place of Origin: | Fujian, China |
---|---|
Brand Name: | HI-CREATE |
Certification: | CE Certificate |
Minimum Order Quantity: | 1 set |
Price: | $10,000.00 - $50,000.00 / Set |
Packaging Details: | PE filem packing or wooden packing |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 4 set/month |
Condition: | New | Type: | Paper Folding Machine |
---|---|---|---|
Voltage: | 380V Or 220V | Power(W): | 4.5kw |
Dimension(L*W*H): | 4.1*1.3*2.1(m) | Weight: | 1.8-3.5T |
Machine Speed: | 60-100m/min | Pneumatic System: | 3HP Air Compressor,Mini Pressure 5kg/cm2 Pa |
Slitting Unit: | Full Cutting | Raw Material: | 12-18 G/m2 |
Folding Size: | Order By Customer | Max. Raw Paper Roll Width: | 420-2100mm |
Max. Raw Paper Roll Dia.: | Standard 1100mm Or ≤1200mm | Raw Paper Roll Core Dia.: | 3'(76.2mm) |
Finished Products Opened Size: | (140, 150, 160-210)*(140-210)mm | Finished Products Folded Size: | (70-105)*(140-210)mm |
Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Port: | Xiamen | ||
High Light: | 1100mm Tissue Manufacturing Machine,22kw Tissue Manufacturing Machine,2.6T Paper Folding Machine |

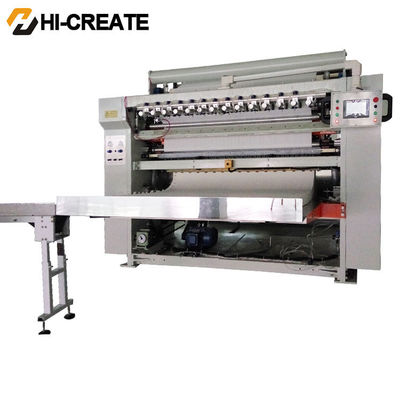

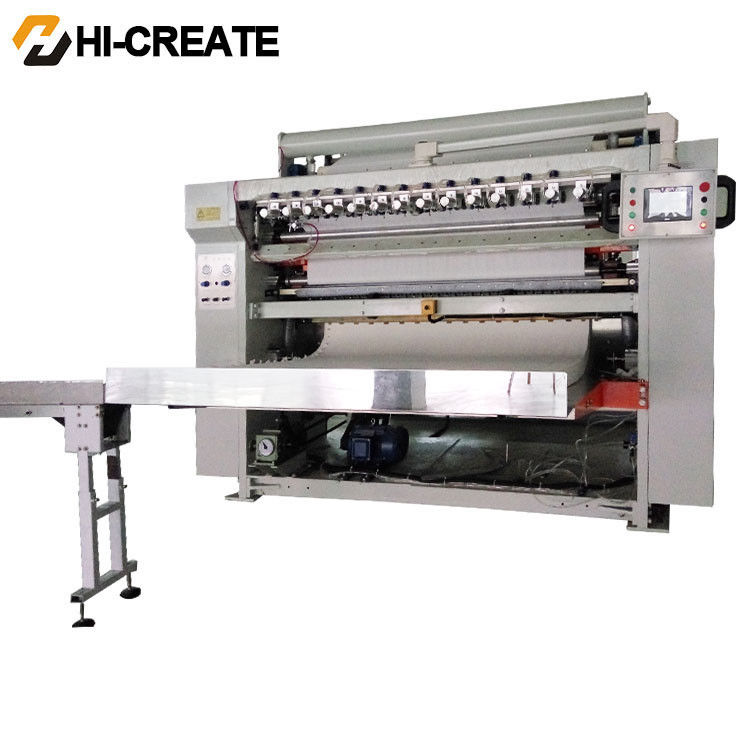

Good Quality Cheap C Fold Tissue Paper Manufacturing Machines
Technology parameters:
Model(Lane) |
2L |
3L |
4L |
5L |
6L |
7L |
8L |
10L |
Max. raw paper roll width(mm) |
420 |
630 |
840 |
1050 |
1260 |
1470 |
1680 |
2100 |
Raw paper material |
12-18g/m2 x 2layers |
|||||||
Max. raw paper roll dia. |
Standard φ1100mm or ≤1200mm |
|||||||
Raw paper roll core dia. |
3'(76.2mm) |
|||||||
Finished products opened size(mm) |
(140, 150, 160-210) *(140-210) (mm) |
|||||||
Finished products folded size |
(70-105) * (140-210) (mm) |
|||||||
Operate speed(sheets/min) |
1600 |
2400 |
3200 |
4000 |
4800 |
5600 |
6400 |
8000 |
Mechanical driving |
Driven by stepless frequency control system |
|||||||
Programme controller |
PLC control, touch screen |
|||||||
Counting system |
Alternate stack by stack |
|||||||
Pneumatic system |
3HP Air Compressor, Mini Pressure 5kg/cm2 Pa |
|||||||
Machine speed |
60-100m/min |
|||||||
Vacuum system |
5.5kw |
7.5kw |
11kw |
13.5kw |
16kw |
22kw |
30kw |
37kw |
Main power |
2.2kw |
3kw |
4kw |
5.5kw |
7.5kw |
11kw |
15kw |
16kw |
Machine size(m) |
4.1*1.3*2.1 |
4.1*1.5*2.1 |
4.1*1.7*2.1 |
4.1*2*2.1 |
4.1*2.3*2.1 |
4.1*2.6*2.1 |
4.1*2.9*2.1 |
4.1*3.2*2.1 |
Weight(ton) |
1.8T |
2.2T |
2.6T |
3.0T |
3.5T |
4.0T |
4.5T |
5T |
Electric voltage |
380V or 220V |
Optional Device :
Bottom embossed roller |
Steel / felt / woolen / rubber |
Edge embossing |
Steel to steel, steel to felt, steel to woolen, steel to rubber , independent adjustment |
Colors |
One color or two colors |
Perfume |
Optional |
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
