Place of Origin: | Fujian, China |
---|---|
Brand Name: | HI-CREATE |
Certification: | CE |
Minimum Order Quantity: | 1 Set |
Price: | $10,000.00 - $50,000.00 / Set |
Packaging Details: | Spray antirust oil on the surface of machine and cover PE film,then packed by seaworthy wooden cases(including all spare parts) |
Delivery Time: | 60 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 10 Set/Sets per Month |
Condition: | New | Product Type: | Facial Tissue |
---|---|---|---|
Processing Type: | Pulp Molding Machine | Voltage: | 220V/380V |
Power(W): | 37KW | Dimension(L*W*H): | 4.1*2.9*2.1M |
Weight: | 4.5T | Max. Raw Paper Roll Width: | 420-1680mm |
Raw Paper Material: | 12-18g/m2*2layers | Max. Raw Paper Roll Dia.: | Standard 1100mm Or ≤1200mm |
Raw Paper Roll Core Dia.: | 3'(76.2mm) | Finished Products Opened Size: | (140, 150, 160-210) *(140-210) (mm) |
Finished Products Folded Size: | (70-105) * (140-210) (mm) | Operate Speed: | 1600-6400 Sheets/min |
Mechanical Driving: | Driven By Stepless Frequency Control System | Machine Speed: | 60-100m/min |
Pneumatic System: | 3HP Air Compressor, Mini Pressure 5kg/cm2 Pa | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Warranty: | One Year | Port: | Xiamen, China |
High Light: | 6400 Sheets/Min Tissue Manufacturing Machine,Z Folding 4 Lanes Tissue Machine,4 Lanes 37kw napkin machine |

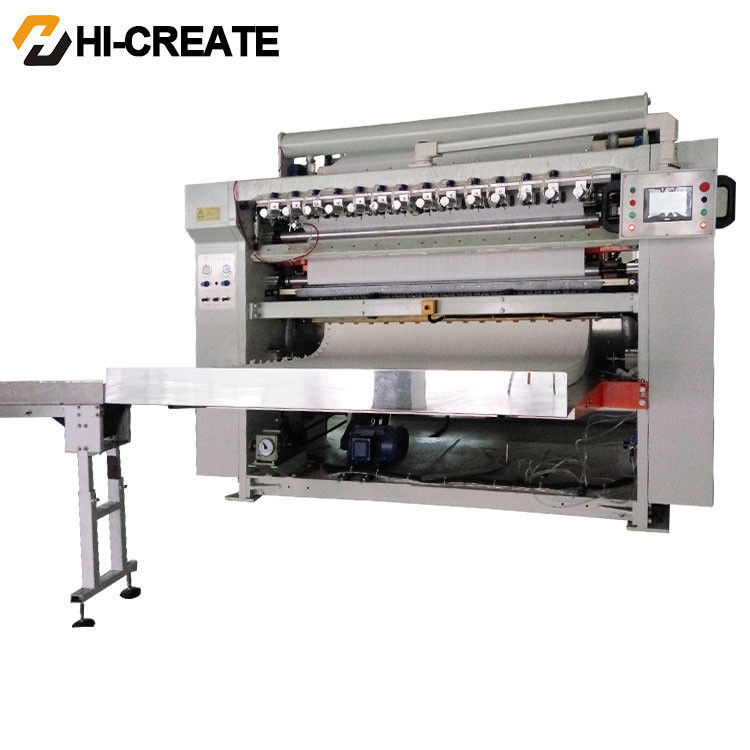

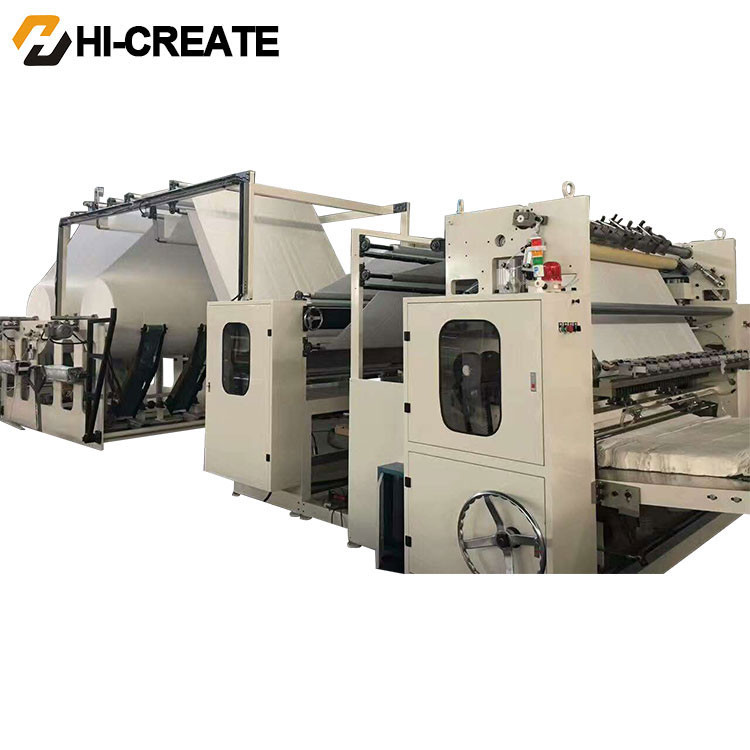

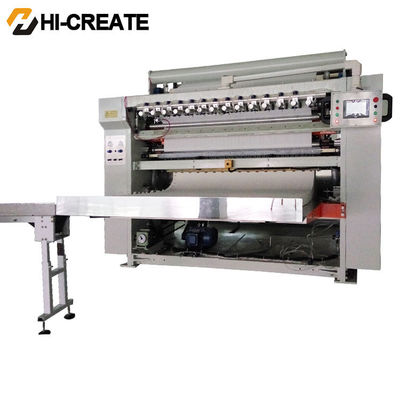

Free Shipping Hand Paper Towel Making Machine Z Folding Four Lines
Technical parameter:
Model(HC-L) |
2L |
3L |
4L |
5L |
6L |
7L |
8L |
Max. raw paper roll width(mm) |
420 |
630 |
840 |
1050 |
1260 |
1470 |
1680 |
Raw paper material |
12-18g/m2*2layers |
||||||
Max. raw paper roll dia. |
Standard φ1100mm or ≤1200mm |
||||||
Raw paper roll core dia. |
3'(76.2mm) |
||||||
Finished products opened size(mm) |
(140, 150, 160-210) *(140-210) (mm) |
||||||
Finished products folded size |
(70-105) * (140-210) (mm) |
||||||
Operate speed(sheets/min) |
1600 |
2400 |
3200 |
4000 |
4800 |
5600 |
6400 |
Mechanical driving |
Driven by stepless frequency control system |
||||||
Programme controller |
PLC control, touch screen |
||||||
Counting system |
Alternate stack by stack |
||||||
Pneumatic system |
3HP Air Compressor, Mini Pressure 5kg/cm2 Pa |
||||||
Machine speed |
60-100m/min |
||||||
Vacuum system |
5.5kw |
7.5kw |
11kw |
13.5kw |
16kw |
22kw |
37kw |
Main power |
2.2kw |
3kw |
4kw |
5.5kw |
7.5kw |
11kw |
15kw |
Machine size(m) |
4.1*1.3*2.1 |
4.1*1.5*2.1 |
4.1*1.7*2.1 |
4.1*2*2.1 |
4.1*2.3*2.1 |
4.1*2.6*2.1 |
4.1*2.9*2.1 |
Weight(ton) |
1.8T |
2.2T |
2.6T |
3.0T |
3.5T |
4.0T |
4.5T |
Electric voltage |
380V or 220V |
Packing & Shipping:
Our Company & Factory:
HI-CREATE is manufacturer for disposable hygiene products machinery development, design and producing, mainly in production line for baby diaper , sanitary napkin, waistband diaper , training pant(pull up) diaper, adult diaper , and a series of household paper, disposable products processing equipment for toilet paper, tissue paper, and napkin paper.
Our Office:
Our Services:
Our Visitors:
Our Certificates:
Our Exhibition:
Customer Message:
Customer’s Photos:
FAQ:
1. Are you a manufacturer or trading company?
We are a manufacturer with our factories, more than 10-year experience in this industry.
2. Where is your factory?
Our factory locates in Xidong Industrial Zone, Huian Town, Quanzhou, Fujian, China.
3. How long is the turnaround time?
It takes about 30-60 working days to finish. And it depends on different products and customized requirements.
4. How long is your delivery time?
15-60 days after order being confirmed. Detailed delivery date should be decided according to production season and order quantity.
5. Can your machine do customization for our products?
We could do some customization size to fit your products size according to your requirement.
